CG-502/031 Multi-Purpose Series

CG-502/031 Multi-Purpose Series

$0.00 USD
$0.00 USD
Sale Sold out

Factory order. Shipping time may vary, please contact support.

Shipping & customs

Weight
n/a

Description

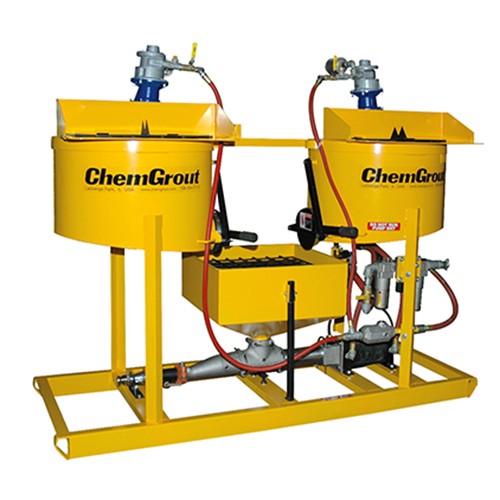

Twin tank grout plant for continuous production. Two 45 gallon mixing tanks alternate into a 30 gallon holding hopper feeding a 3 inch single acting piston pump; output reaches 20 GPM on air and 16 GPM on hydraulic power at 400 to 550 PSI. Air, hydraulic, electric, gas and diesel hydraulic versions weigh 890 to 2,040 lb. One tank mixes while the other discharges, keeping grout moving on large baseplate pours.

  • Mixing tanks: two 45 gal
  • Hopper: 30 gal
  • Pump: 3 in single-acting piston
  • Max output: 20 GPM air / 16 GPM hydraulic
  • Max pressure: 400 PSI air / 550 PSI hydraulic
  • Power: air, hydraulic, electric/hydraulic, gas/hydraulic, diesel/hydraulic
  • Weight: 890-2040 lb
