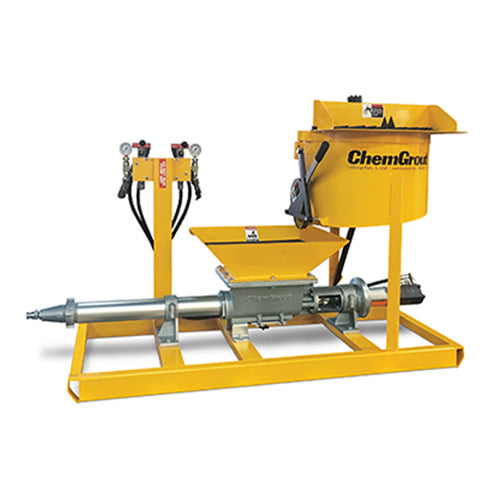

CG-570 Thick Mix/Mortar Sprayer Series
CG-570 Thick Mix/Mortar Sprayer Series
Factory order. Shipping time may vary, please contact support.
Couldn't load pickup availability
Continuous mixing and pumping plant for materials from thin grouts to repair mortars, with a 45 gallon mixing tank, 15 gallon hopper and a three stage size 6 open throat progressing cavity pump rated 2 to 8 GPM at up to 580 PSI. Skid and trailer versions with hydraulic, gas or diesel drive, some with onboard air compressors for spray application. Weights run 750 to 1,625 lb.
- Mixing tank: 45 gal
- Hopper: 15 gal
- Pump: 3-stage size 6 open throat progressing cavity
- Max output: 2-8 GPM
- Max pressure: 580 PSI
- Power: hydraulic, gas/hydraulic, diesel/hydraulic; optional onboard air compressor
- Mounting: skid or trailer
- Weight: 750-1625 lb
