Polydeck MV009VC22J

METALDEX ULTRACLEAN Wire Panel 1x2 ft

METALDEX ULTRACLEAN Wire Panel 1x2 ft

$0.00 USD
$0.00 USD
Sale Sold out

Factory order. Shipping time may vary, please contact support.

Opening

Shipping & customs

Weight
n/a

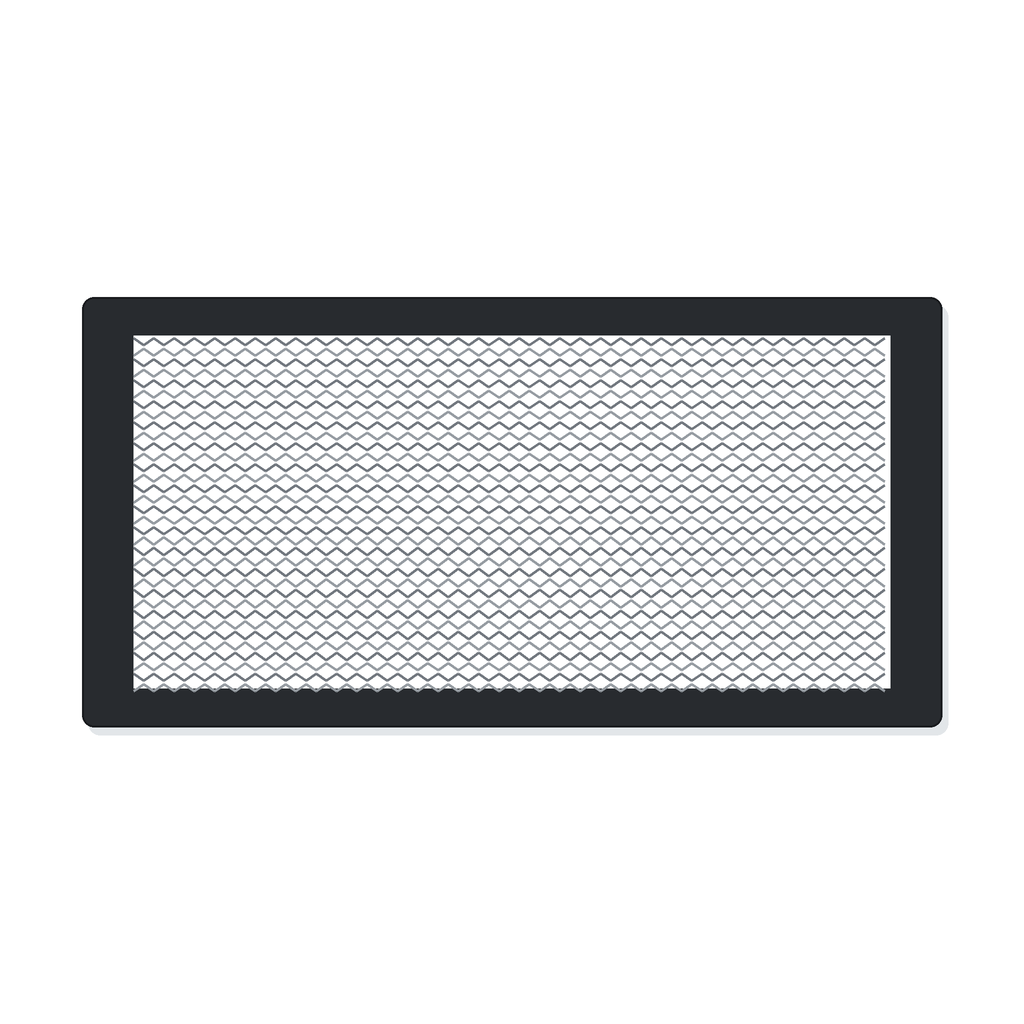

METALDEX ULTRACLEAN self cleaning wire panels, 1 ft x 2 ft at 30 or 40 mm thickness. The zigzag wire pattern generates secondary motion that sheds near size buildup. Pin fastening.

Openings and part numbers

Opening Wire dia Open area Part number
3/32 in 0.060 in 32.4% MV009VC22J
1/8 in 0.054 in 38.9% MV013VC22J
3/16 in 0.072 in 40.8% MV019VC22K
1/4 in 0.080 in 44.2% MV025VC22L
5/16 in 0.092 in 45.7% MV031VC22M
3/8 in 0.105 in 47.6% MV038VC22N
1/2 in 0.148 in 45.5% MV050VC22Q
9/16 in 0.148 in 49.4% MV056VC22Q
5/8 in 0.139 in 51.9% MV063VC22P

Images are illustrative and may differ from the item supplied.
