Polydeck
SKU: MW050RC21A
METALDEX XPT Welded Wire Panel 1x2 ft
METALDEX XPT Welded Wire Panel 1x2 ft
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Factory order. Shipping time may vary, please contact support.
Quantity
Couldn't load pickup availability
Shipping & customs
- Weight
- n/a
- H.S. code

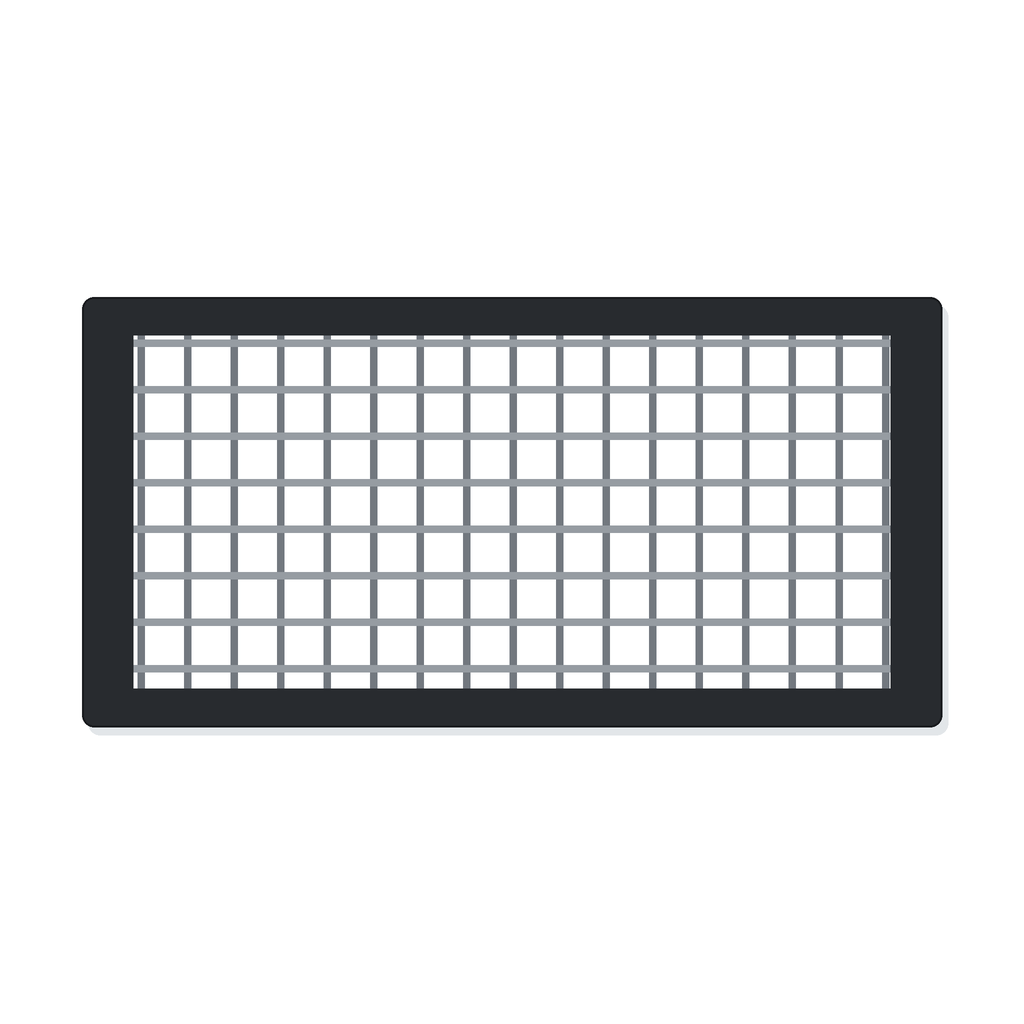

METALDEX XPT modular welded wire panels, 1 ft x 2 ft at 30 or 65 mm thickness. Open area comparable to wire cloth with the convenience of modular pin fastening. Available with the wires oriented across or with the material flow.
Openings and part numbers
| Opening | Wire dia | Open area | Across flow PN | With flow PN |
|---|---|---|---|---|
| 1/2 in | 3/16 in | 44.4% | MW050RC21A | MW050SC21A |
| 9/16 in | 1/4 in | 38.2% | M056RC26B | M056SC26B |
| 3/4 in | 1/4 in | 45.9% | M075RC26B | M075SC26B |
| 7/8 in | 1/4 in | 49.0% | M088RC26B | M088SC26B |
| 1 in | 5/16 in | 50.0% | M100RC26C | M100SC26C |
| 1-1/8 in | 5/16 in | 49.2% | M113RC26C | M113SC26C |
| 1-1/4 in | 5/16 in | 48.8% | M125RC26C | M125SC26C |
| 1-1/2 in | 3/8 in | 49.6% | M150RC26D | M150SC26D |
| 1-3/4 in | 3/8 in | 55.9% | M175RC26D | M175SC26D |
| 2 in | 3/8 in | 55.6% | M200RC26D | M200SC26D |
| 2-1/4 in | 3/8 in | 59.8% | M225RC26D | M225SC26D |
| 2-1/2 in | 3/8 in | 60.4% | M250RC26D | M250SC26D |
| 3 in | 1/2 in | 63.8% | M300RC26E | M300SC26E |
Images are illustrative and may differ from the item supplied.
