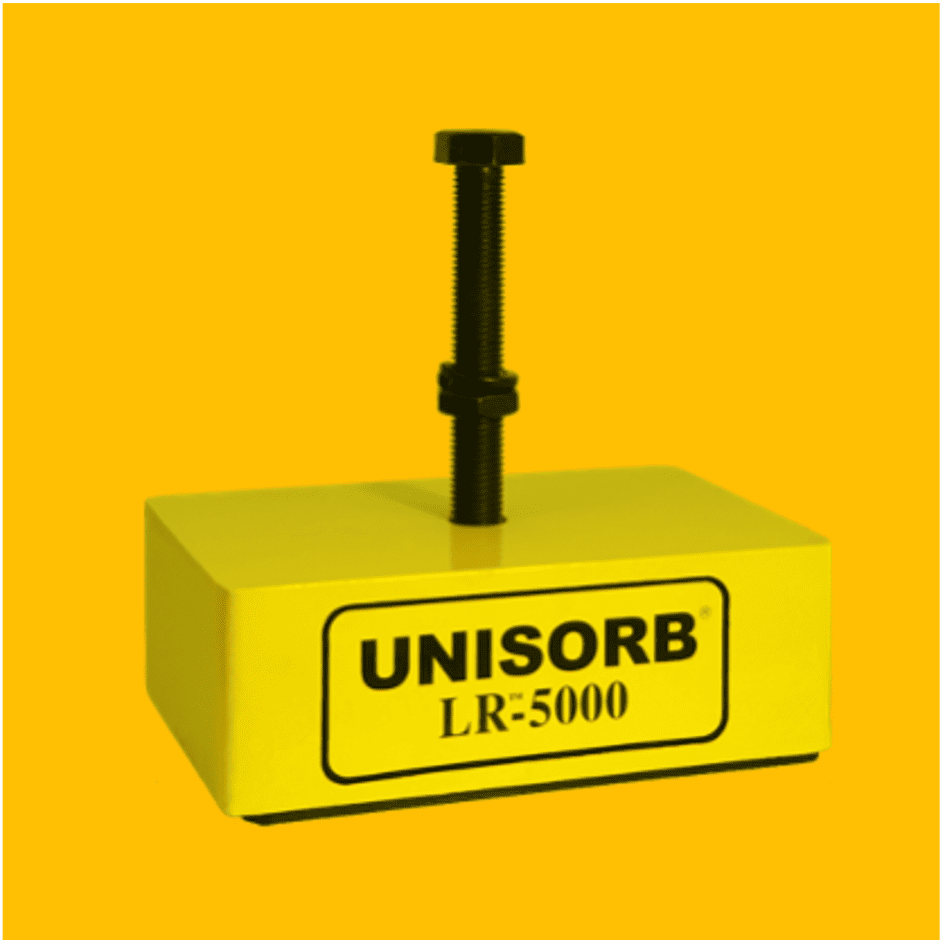

LEVEL-RITE LR Machinery Mounts

Rectangular ductile iron machinery mount with a bonded elastomeric isolation pad and a full 1-3/8 inch height adjustment range. Grade 5 metric adjusting bolts from M12 to M36 give fine leveling control, and the rectangular footprint resists machine walking better than round mounts while shedding coolant and oil. Seven standard sizes carry 2,500 to 35,000 lb per mount for general leveling and vibration isolation of production machinery on uneven floors.

• Models: LR-2500 (574200), LR-5000 (574300), LR-7500 (574400), LR-12000 (574500), LR-16000 (574600), LR-25000 (574700), LR-35000 (574800)
• Load capacity: 2,500 to 35,000 lb per mount
• Adjustment range: 1-3/8 in overall height adjustment
• Material: ductile iron housing and impact plate (spec 65-45-12), proprietary elastomer isolation pad
• Bolts: grade 5 metric adjusting bolts M12 to M36
• Light duty: LR-200 (250 lb) and LR-500 (500 lb) also produced
• Packaging: each; 7 standard sizes LR-2500 to LR-35000
