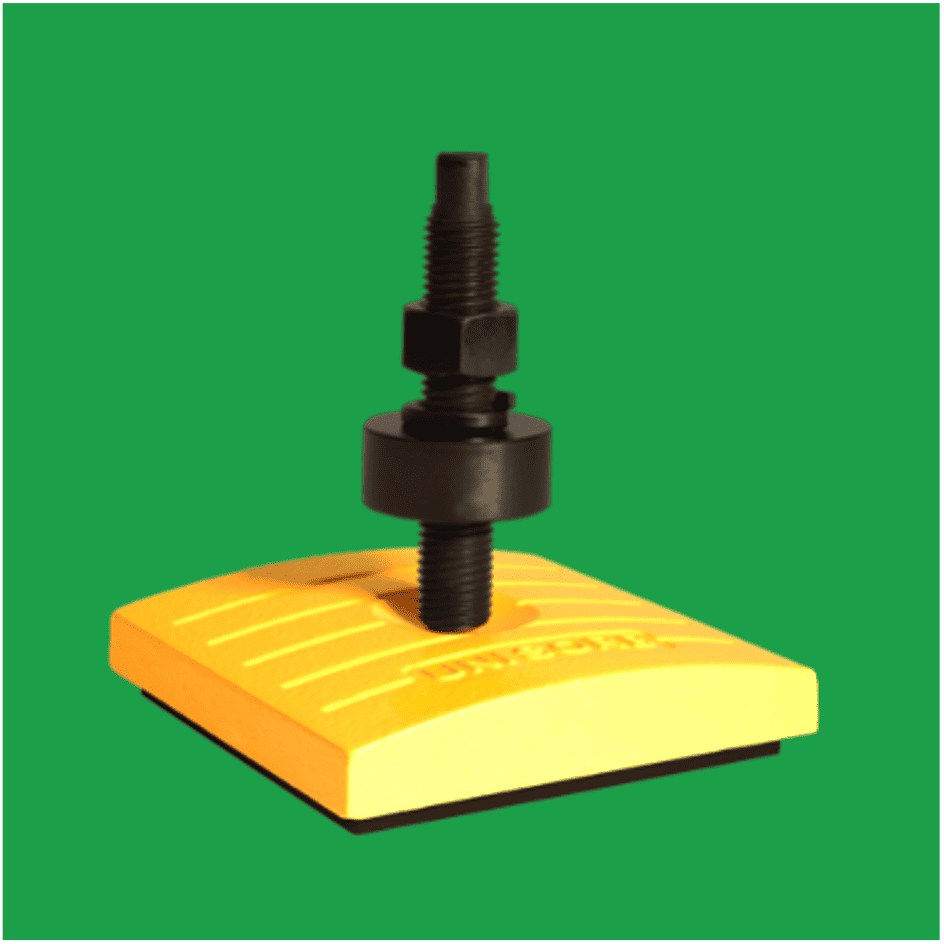

LEVEL-RITE R Series Machinery Mounts

Self-contained leveling mount with a 1/2 inch thick elastomeric isolation pad, cast iron and steel construction, and a free-floating leveling screw giving up to 2 inches of vertical adjustment. Six sizes from R9 to R100 carry 900 to 10,800 lb per mount with metric adjusting screws from M12 to M24 and footprints from 3x3 to 6x6 inches. Compensates for pitched or uneven floors under all types of machinery.

• Models: R9, R16, R28, R36, R48, R100
• Load capacity: 900 to 10,800 lb per mount
• Adjustment: up to 2 in vertical via free-floating leveling screw
• Pad: 1/2 in thick elastomeric pad
• Material: cast iron with anodized/black oxide steel
• Screws: M12x1.75 to M24x3
• Footprints: 3x3 to 6x6 in
• Packaging: each; 6 sizes
