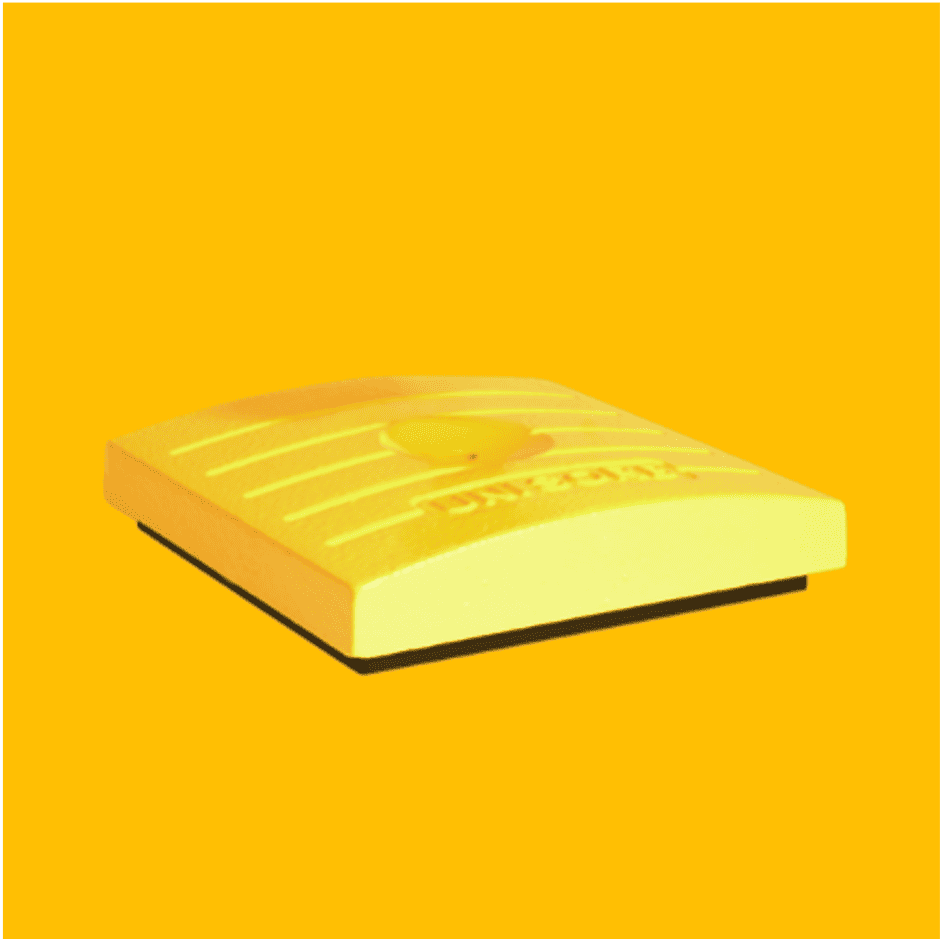

LEVEL-RITE U Series Machinery Mounts

Self-contained isolation mount that accepts the machine's existing leveling screws and is supplied without leveling hardware. Elastomeric pad construction isolates vibration under precision and finishing equipment while the heavy duty body takes point loads from the screw tip. Six sizes from U9 to U100 carry 900 to 10,800 lb per mount, with footprints from 3x3 to 6x6 inches and heights of 1 to 1-1/2 inches.

• Models: U9, U16, U28, U36, U48, U100
• Load capacity: 900 to 10,800 lb per mount
• Design: accepts the machine's own leveling screws; supplied without leveling accessories
• Pad: elastomeric isolation pad
• Footprints: 3x3 to 6x6 in, 1 to 1-1/2 in tall
• Packaging: each; 6 sizes
