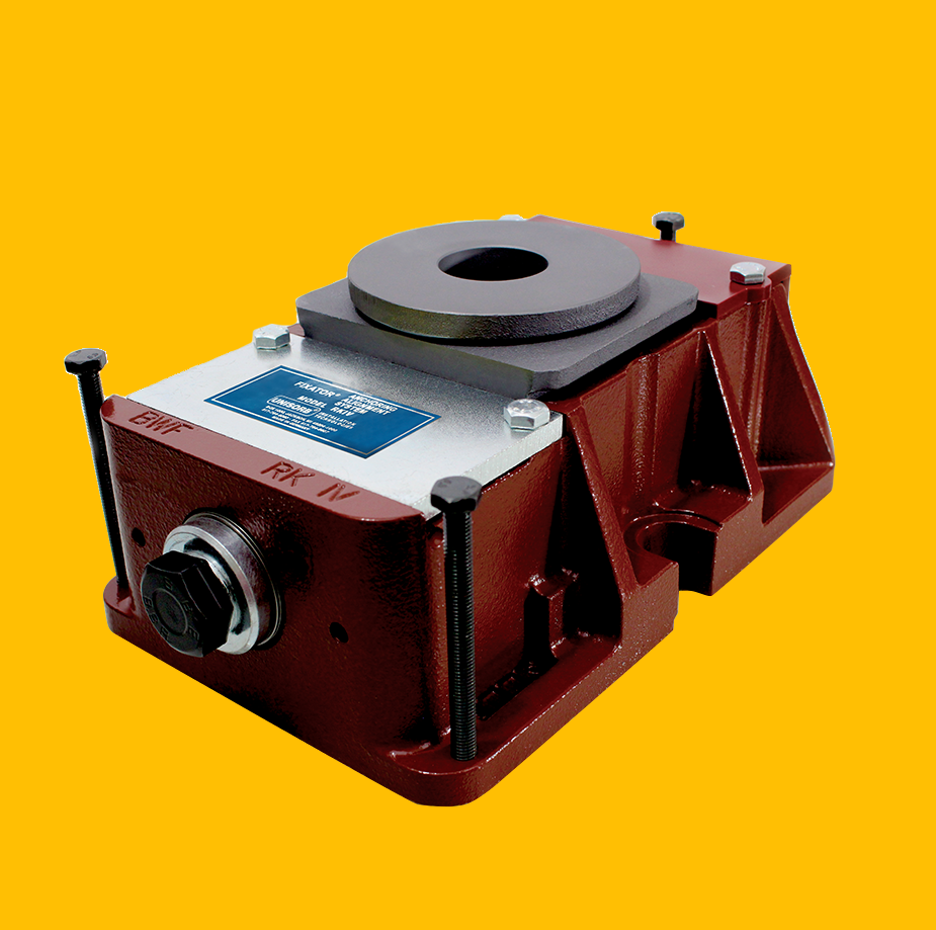

RK Fixator Precision Alignment System

Anchoring and alignment wedge system that lets machinery be leveled after the anchor nuts are tightened. A patented three-piece wedge gives true vertical lift with micro-level precision, moving 0.010 to 0.020 inch per turn of a small hand wrench. Six sizes RKI to RKVI accept M12 to M42 anchor studs and allow lift loads from 20,000 to 269,500 lb per unit. Molykote treated bearing surfaces need no maintenance in normal service.

• Sizes: RKI, RKII, RKIII, RKIV, RKV, RKVI
• Max lift load: 20,000 to 269,500 lb per unit
• Vertical adjustment: 0.010 to 0.020 in per turn; 0.20 to 0.51 in max travel
• Anchor studs: M12 to M42 through-type and two-piece stud options
• Surfaces: Molykote treated load bearing surfaces
• Options: spherical washer sets, covers, pre-leveling hardware
• Packaging: each; sizes RKI to RKVI plus anchor options
