S Fixator Top-Access Leveling System

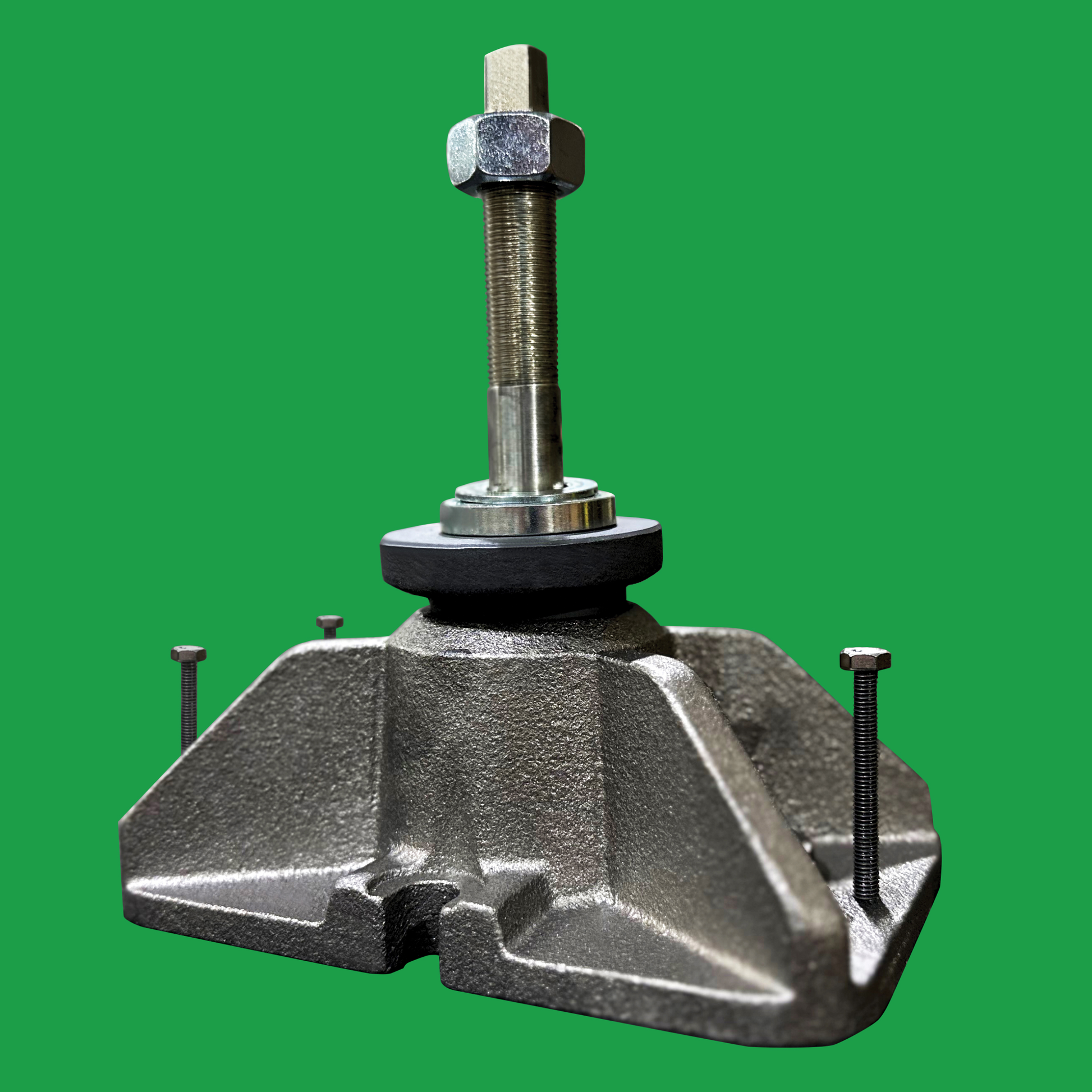

Top-access leveling element for machines and floor plates where side access is blocked. A spline-driven adjusting sleeve and spherical support plate give vertical adjustment from above, 2 mm per turn with 8 to 20 mm total travel by size. Five sizes SI to SV use M16 to M36 adjusting threads and carry maximum loads from 20,200 to 134,800 lb. Options include spherical washer sets, side anchor bolts and sealed cover plates for finished floors.

• Sizes: SI (M16) to SV (M36)
• Max load: 20,200 to 134,800 lb per unit
• Adjustment: 2 mm per turn; 8 to 20 mm max vertical travel
• Construction: cast iron housing, spline-driven adjusting sleeve, spherical support plate
• Options: spherical washer sets (p/r), side anchor bolts (c), center stud (sew), cover plates (d)
• Packaging: each; sizes SI to SV plus options
