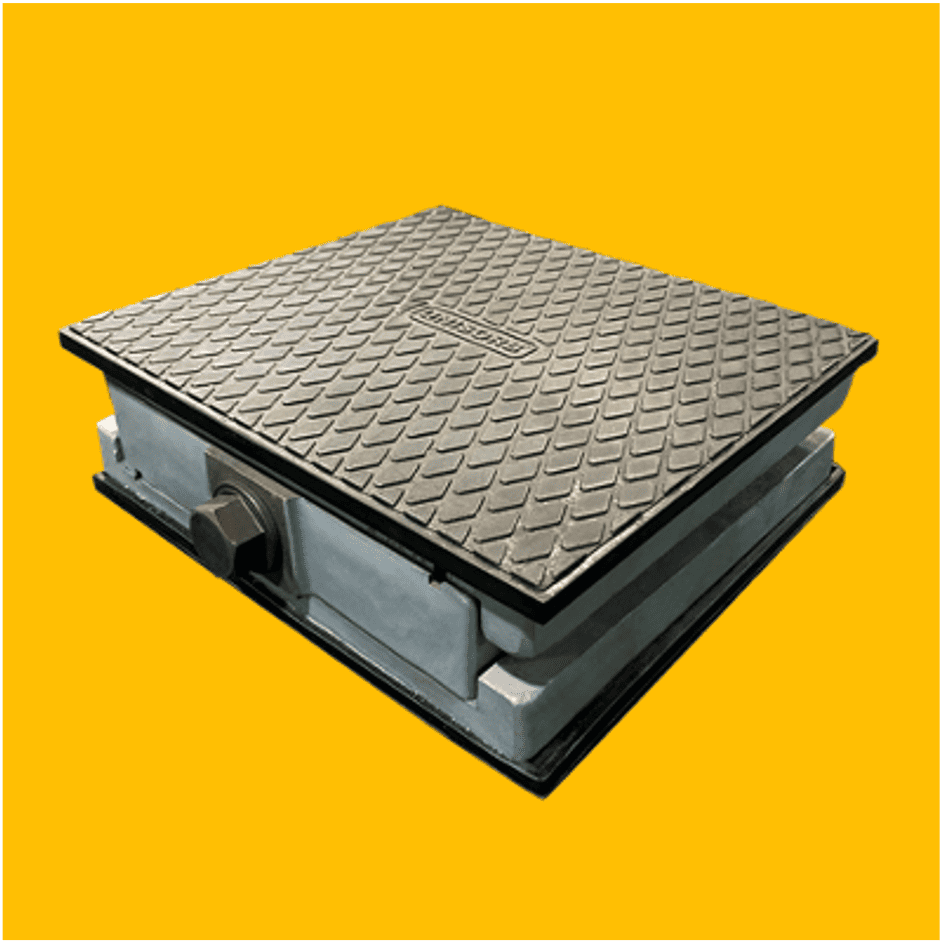

TRI-WEDGE TW-35000 Machinery Mount

Heavy duty wedge mount rated 35,000 lb for presses and large production machinery. The three-wedge design gives mechanical lift through an easily reached side adjusting bolt, with two height ranges set by retainer position. An optional 20 mm diameter by 150 mm vertical stud ties the machine to the mount for added stability. Recessed elastomer pads isolate vibration and prevent walking; the mount can also run without pads for rigid installations.

• Load capacity: 35,000 lb (15,909 kg)
• Mechanism: three-wedge mechanical lift, side-access adjusting bolt, two height ranges
• Optional stud: 20 mm dia x 150 mm OAL vertical stud
• Dimensions: 9.40 x 8.40 in footprint
• Pads: recessed isolation pads approx 1/4 in thick
• Packaging: each; optional vertical stud
