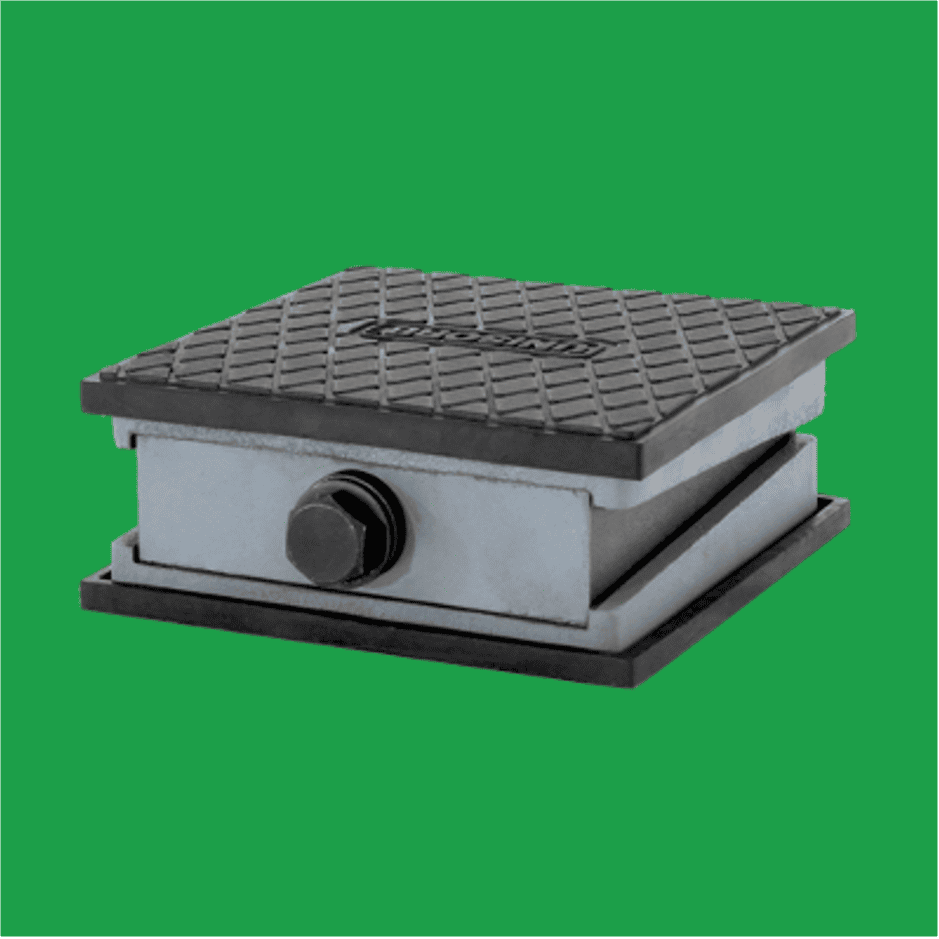

TRI-WEDGE TW-8000 Machinery Mount

Heavy duty wedge style machinery mount rated 8,000 lb. Two stationary wedges and one sliding center wedge convert turns of a side-access adjusting bolt into true vertical lift, and a repositionable retainer gives two height ranges in one mount. Recessed quarter-inch isolation pads between the machine base, mount and floor damp vibration and stop machine walking. Works with or without pads for in-place alignment and leveling.

• Load capacity: 8,000 lb (3,636 kg)
• Mechanism: two stationary wedges plus one sliding wedge, side-access adjusting bolt
• Height ranges: two ranges via repositionable retainer
• Dimensions: 5.31 x 5.31 in footprint
• Pads: recessed isolation pads approx 1/4 in thick, usable with or without
• Packaging: each
