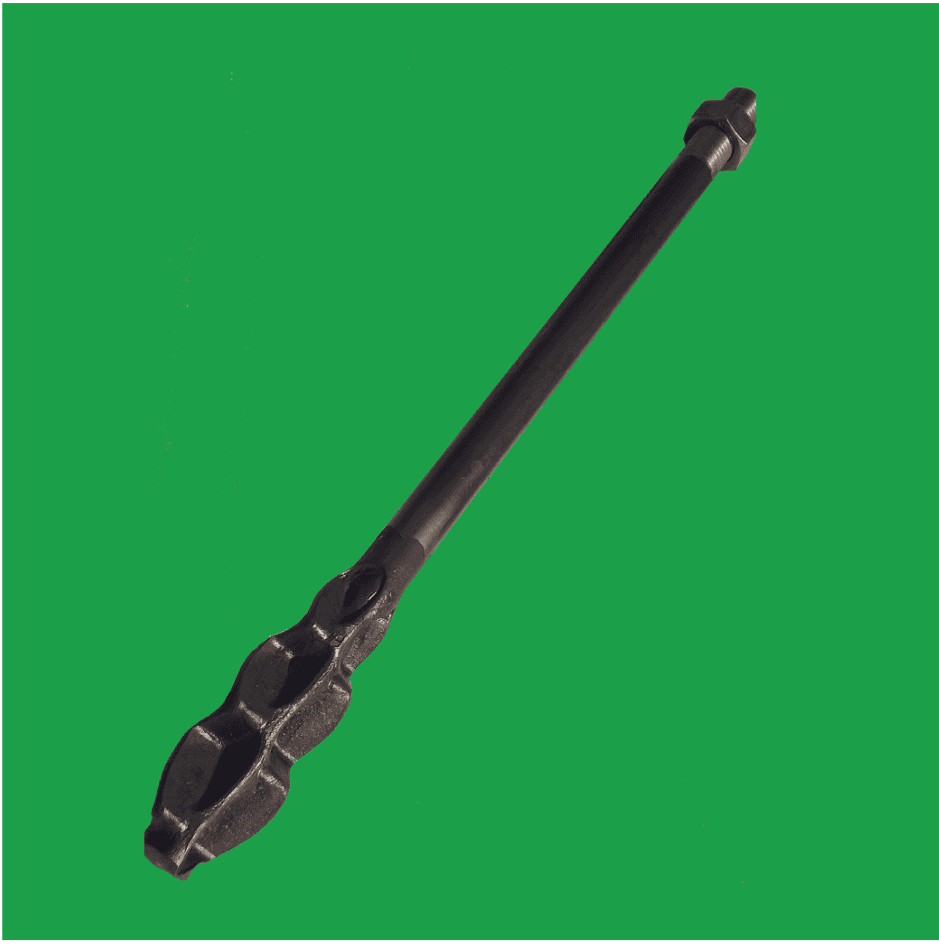

Vector Bolts Machinery Anchor Bolts

Forged steel anchor bolt with angular facets that spread stud tension into a cone-shaped compression pattern in the surrounding grout, raising pull-out strength and cutting required embedment depth. Made from 90,000 psi minimum tensile material in six diameters, EM12 to EM36, with standard lengths from 6 to 24 inches. Sets into cored or precast foundation holes with cement or epoxy grout. Each bolt includes one nut; spherical washer sets and lock collars are available.

• Material: forged steel, 90,000 psi minimum tensile
• Diameters: EM12, EM16, EM20, EM24, EM30, EM36 (12 to 36 mm metric threads)
• Lengths: standard 6 to 24 in by diameter; custom lengths available
• Embedment: 5 to 15 in minimum by size
• Accessories: spherical washer sets, lock collar and O-ring sets
• Packaging: each; includes one nut
