Polydeck
POLYDEX Screen Panel PU 1x1 ft
POLYDEX Screen Panel PU 1x1 ft
Precio habitual
$0.00 USD
Precio habitual
Precio de oferta
$0.00 USD
En existencias
Cantidad
No se pudo cargar la disponibilidad de retiro
Shipping & customs
- Weight
- n/a
- H.S. code

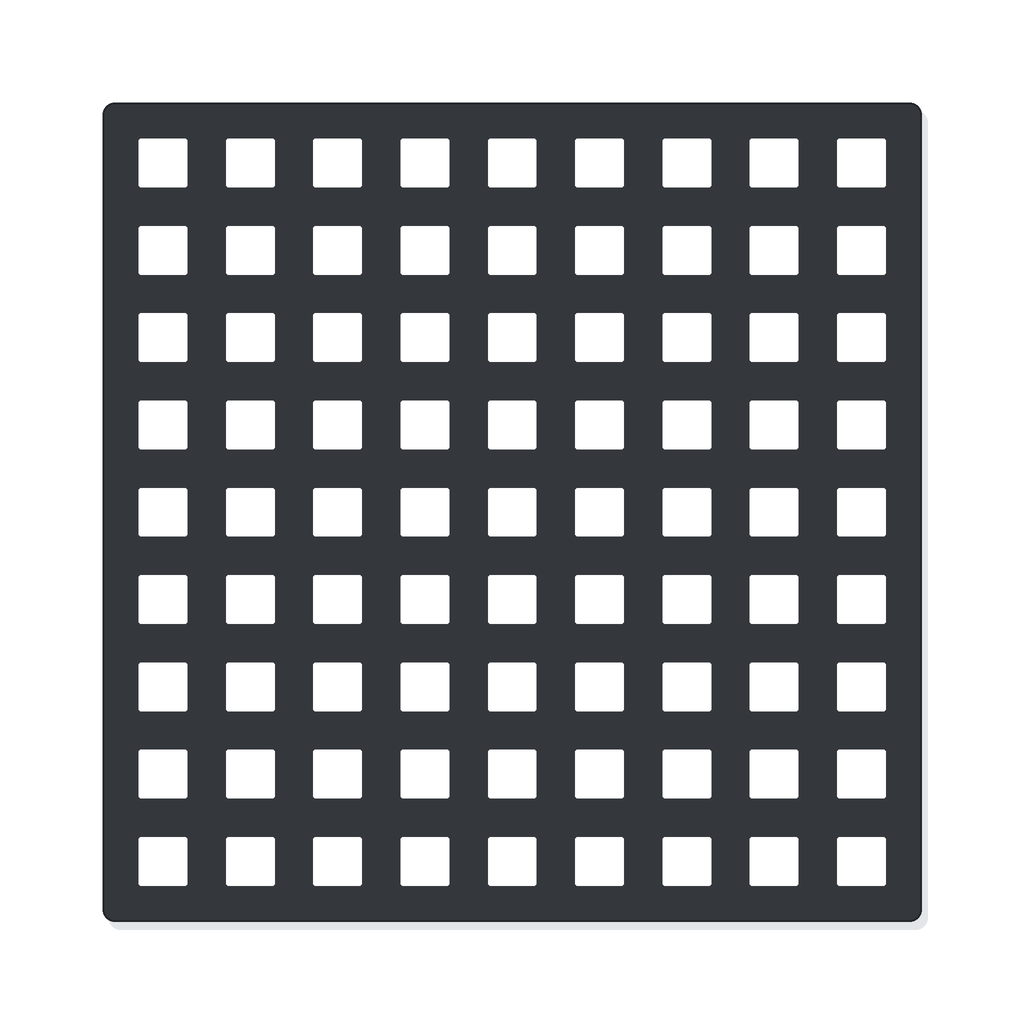

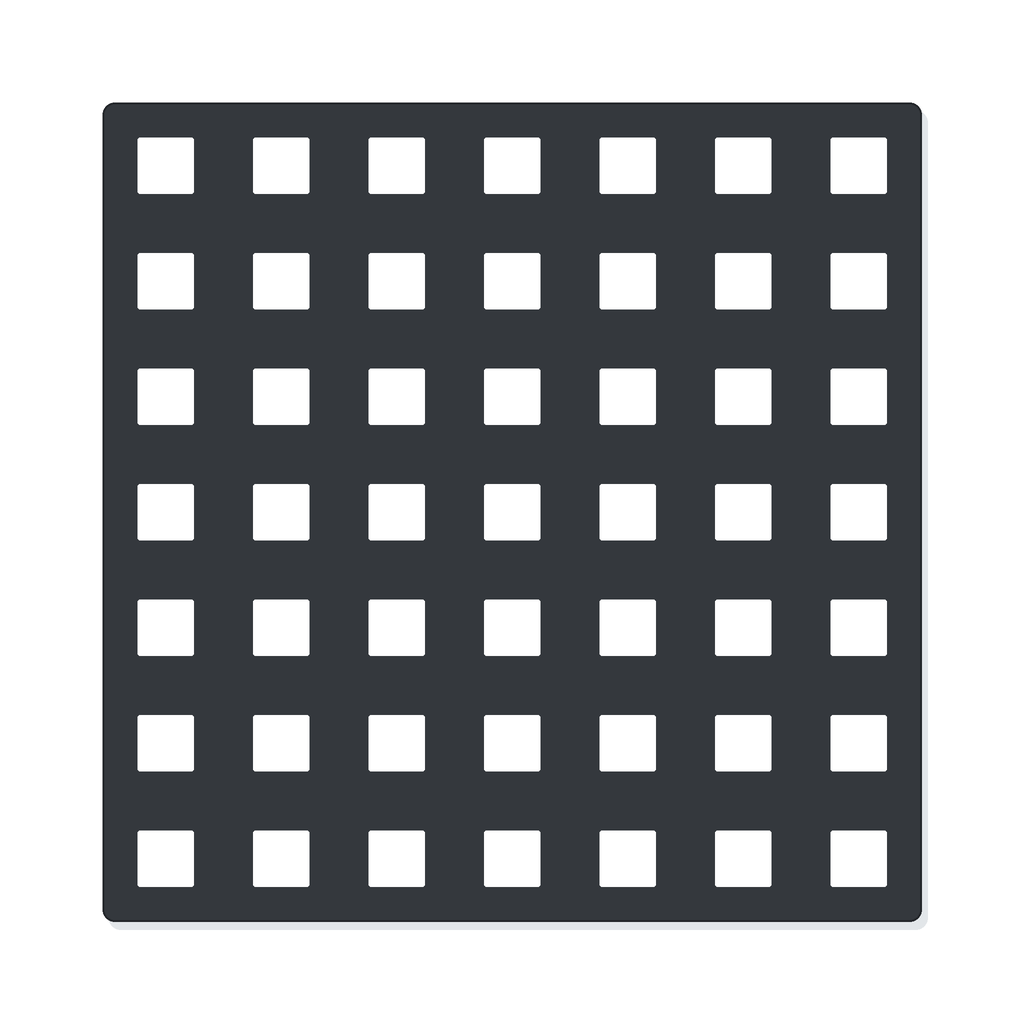

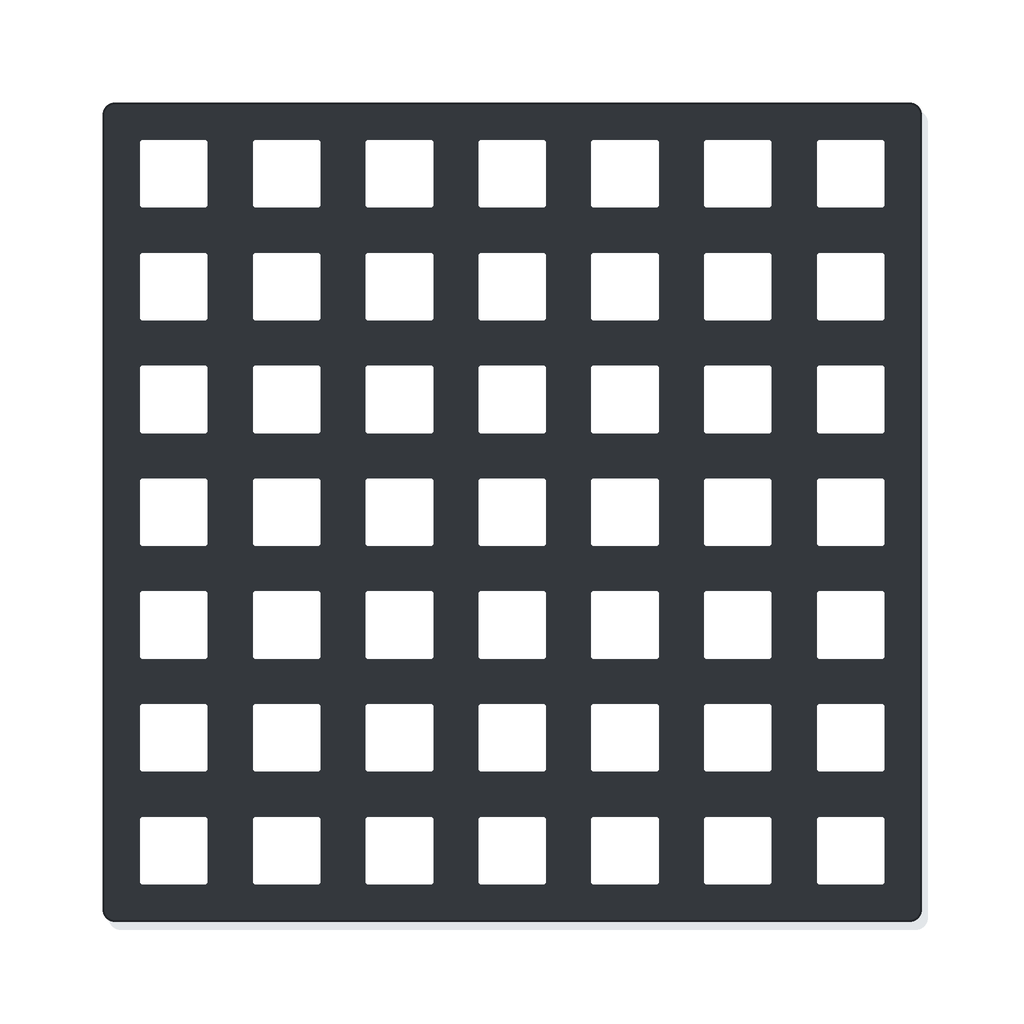

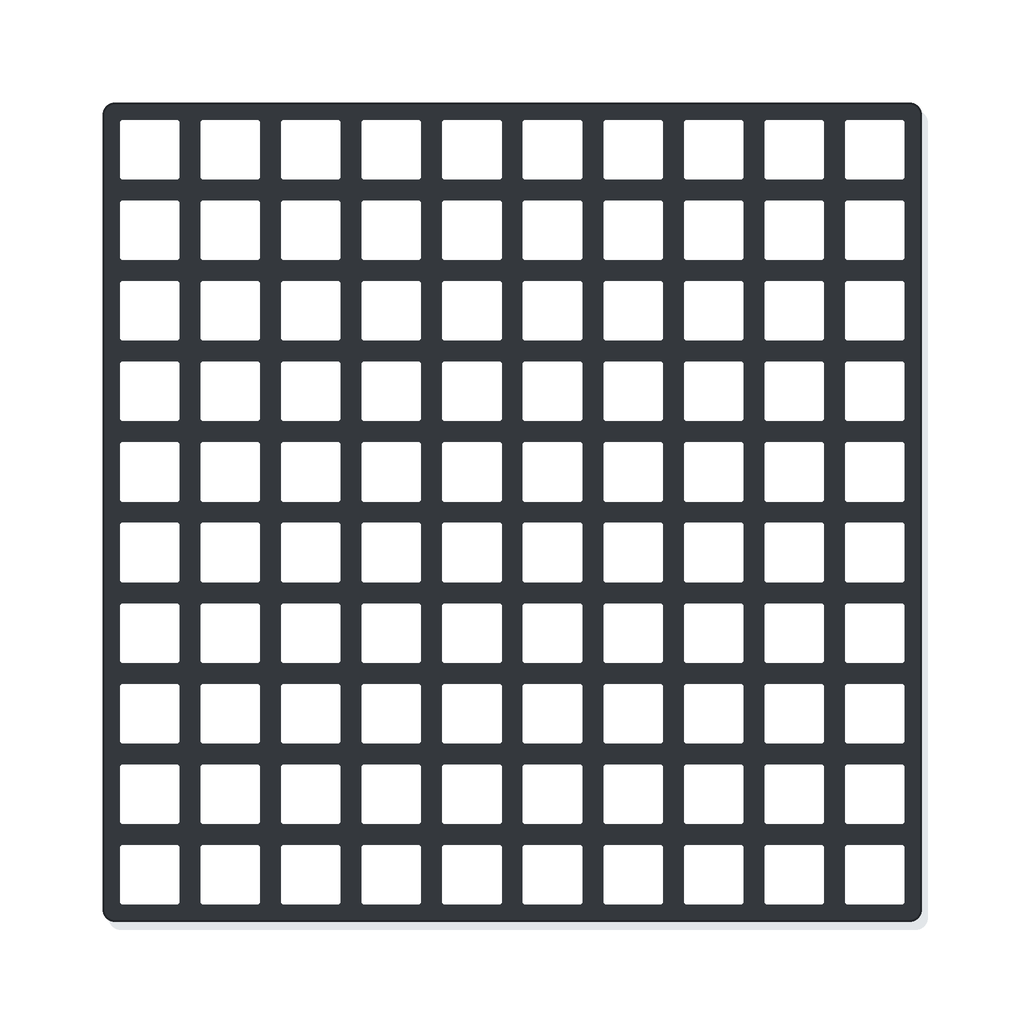

POLYDEX injection molded polyurethane screen panels in the 1 ft x 1 ft modular standard, 30 to 65 mm thick. Four panel styles: Standard with open area to about 23 percent, EOP at 28 percent with apertures running to the panel end, MAXI at 33 percent, and DMAX at 52 percent. Choose the aperture design and fastening below; aperture size within the design range is confirmed at quote.
Aperture size ranges
| Aperture design | Size range |
|---|---|
| VR | 2 - 90 mm |
| Slotted | 0.1 x 9 - 150 x 175 mm |
| Square | 2 - 200 mm |
| SVR | 0.65 x 7 - 38 x 55 mm |
| Continuous slot | 0.65 - 2 mm |
| Herringbone | 1 - 3 mm |
| Round | 60 - 65 mm |
| Cutter | 1 mm |
| VST | 0.65 - 1 mm |
| Solid | blank panel |
Surface feature options
Dams in 1, 2 and 3 in heights, deflectors, restricted flow bars, skid bars, and bolted scrolls for trommels. XP, XP100, FXP, WXP and WXP100 material formulations.
Images are illustrative and may differ from the item supplied.
